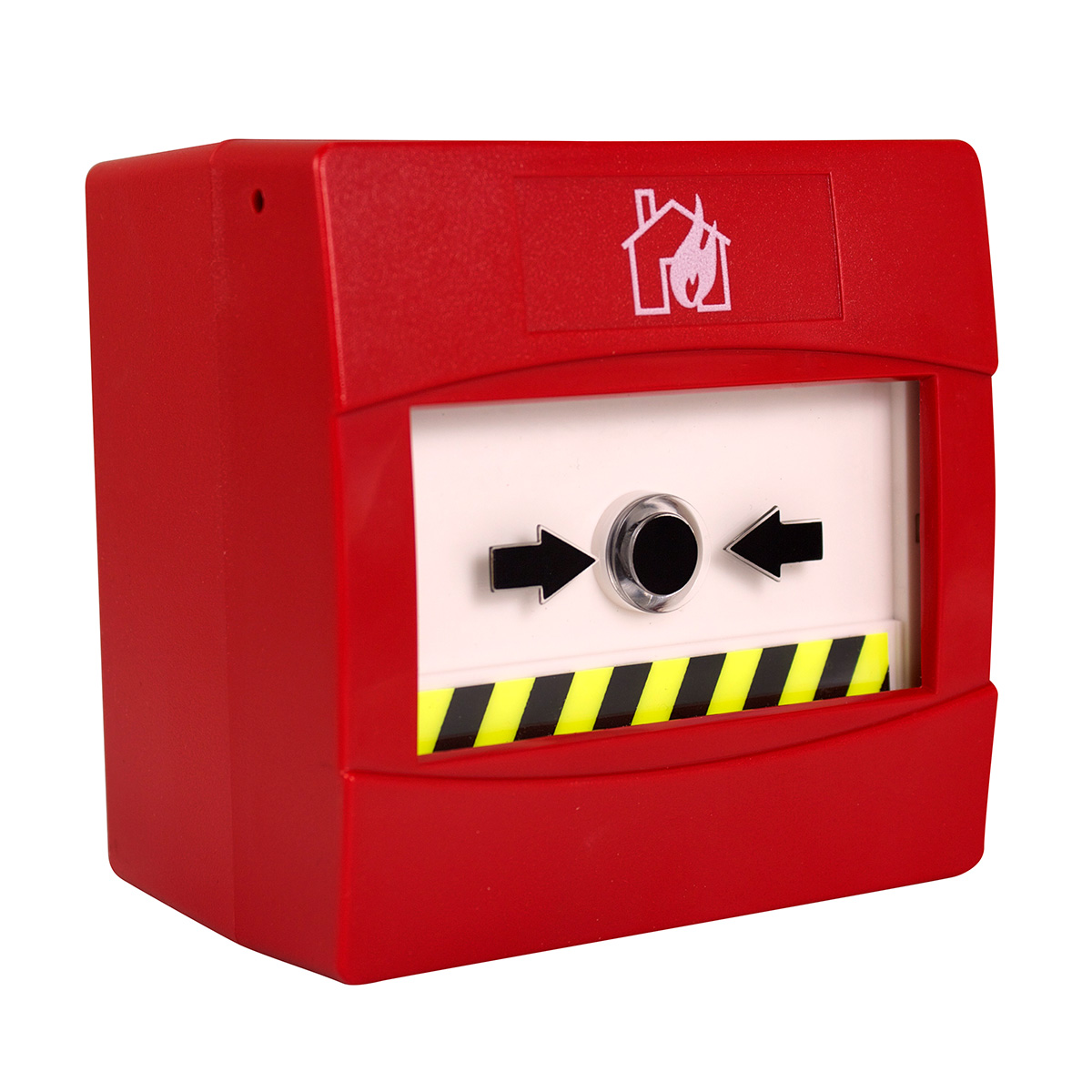

CAST Red Manual Call Point, Universal Mounting
- A high-quality red manual call point for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels.
- LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication certified to EN54-13.
- Surface or flush mountable.
- Onboard short-circuit loop isolator.
- Smooth-action resettable element mimics the feel of breaking glass.
- Supplied with reset/back box removal key and ‘Not in Use’ label.
- Red LED ‘alarm ring’ illuminates call point face upon activation.
- Photoluminescent operating window remains visible for up to 5 minutes.
- 5mA typical alarm current (370µA typical quiescent @ 22-40V DC.
- IP42 rated (IP67 rated version also available, order code CA47067)
- Yellow, green, blue and white versions also available.
More Information
‘CAST’ is the world’s most-advanced ‘distributed intelligence’ fire alarm system protocol. Conceived, designed and realised by C-TEC as part of a five-year, multi-million pound project, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels & field devices. Now available to purchase, its key features include:
• 255 devices per loop.
• Autonomous decision-making for faster response times.
• Multiple type codes.
• 40V loop drive voltage.
• Two ‘soft’ addressing options – automatic via the panel or manual via a powerful handheld programmer.
• Powerful multi-level addressing facilitates easy device addition and swapped device identification.
• Multiple functionality at a single address (integrated devices)
• Volumes, tones & detector modes can be changed at compatible panels.
• High-speed data transmission and robust data transfer.
• Intrinsically EN54-13 compliant.
• Provides geographical location of short and open circuit faults (a short circuit isolator is included as standard in every CAST field device).
• Replace device function.
• Future seamless integration with other CAST life safety systems reducing energy, servicing, installation and repair costs.
• Designed and manufactured in the UK.
Technical Specifications
| Approvals/certifications | LPCB certified to EN54 Parts 11 & 17 and KiwaTelefication certified to EN54-13. |
|---|---|
| Compatibility | Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels. |
| Application/operation | |
| Supply/operating voltage | |
| Quiescent current | |
| Alarm current | |
| Indicators | Red 'alarm ring'. Lit steady red (when activated) and flashing Red (when polling) |
| Connections | |
| Product dimensions (mm) | |
| Construction & finish | |
| IP Rating | |
| Weight | |
| Operating conditions/temperature |
Documentation
| CA470 CAST Manual Call Point Instructions – DFU4700000 | 309.89 KB | Download |
Spares & Accessories
| CA470C | Protective cover for CA470 CAST Manual Call Point |
| CA740GL | Spare test key for CA470 CAST Manual Call Point |
| CA470GL | Spare frangible element for CAST Manual Call Point |
BIM/CAD Drawings
Approval Certificates
| LPCB Third Party Approval Certificate – CAST Manual Call Points to EN54-11/17 | 196.89 KB | Download |
| KIWA Third Party Approval Certificate – XFP & ZFP CAST Fire Panels and CAST Devices to EN54-13 (Systems Approval) | 130.87 KB | Download |
| EU CPR Certificate of Conformity – CAST CA470 Manual Call Point (CoC) | 185.57 KB | Download |
| EU Declaration of Conformity – CA470 Manual Call Point (DoC) | 73.18 KB | Download |
| EU Declaration of Performance – CAST CA470 Manual Call Point (DoP) | 175.62 KB | Download |
| UKCA CPR Certificate of Conformity – CAST CA470 Manual Call Point (CoC) | 193.22 KB | Download |
| UKCA Declaration of Conformity – CA470 Manual Call Point (DoC) | 159.00 KB | Download |
| UKCA Declaration of Performance – CAST CA470 Manual Call Point (DoP) | 342.63 KB | Download |
