Isolatable Monitoring Point, Magnetic Reset

Order code: NC894DKM Category: Monitoring Points

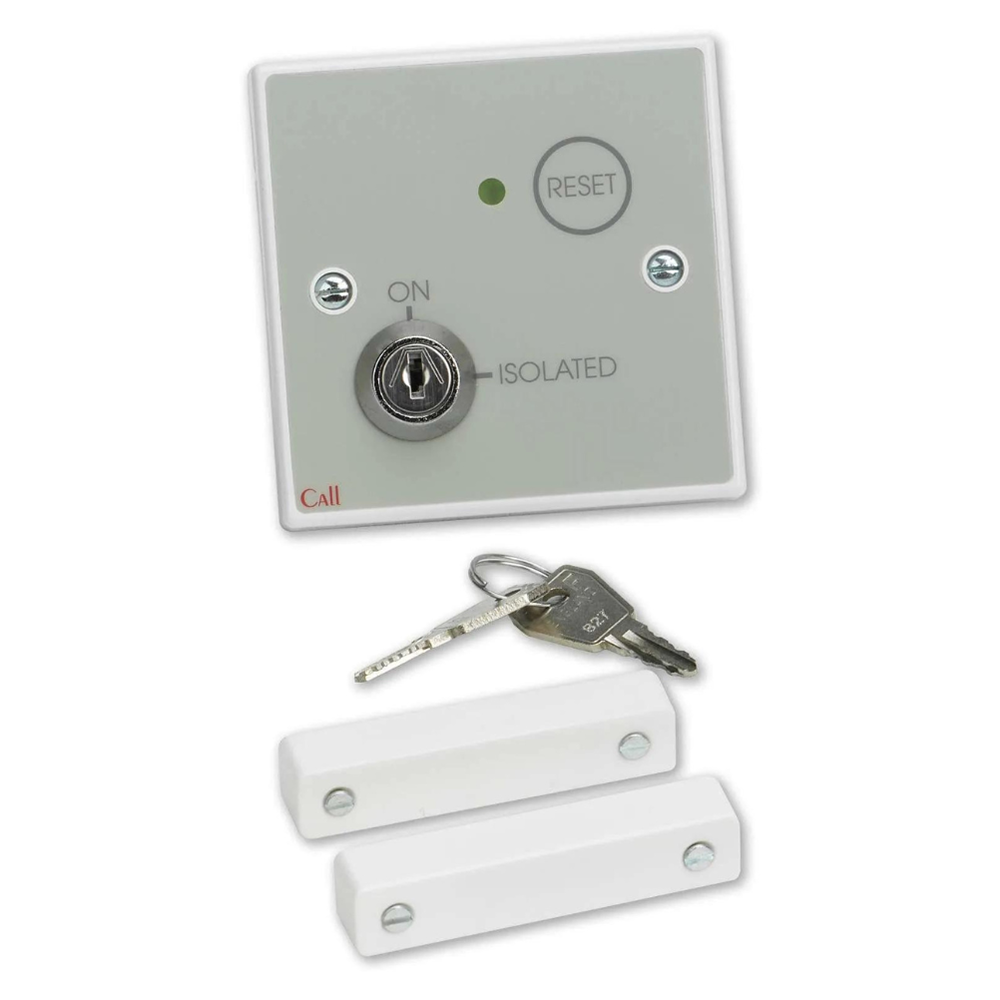

A keyswitch-isolatable monitoring point c/w magnetic door contacts for use with C-TEC’s 800 Series Call System.
Can be used to monitor any device with a normally open or normally closed switch.
Triggers a Standard call when activated
Typical uses include monitoring fire exits, drug cupboards, store rooms, etc.
Isolation keyswitch temporarily turns off the device’s monitoring function when in the ISOLATED position.
Red reassurance LED illuminates when a call is made.
Includes a magnetic RESET ‘target’ for the secure cancelling of calls (requires a separately available NC803M magnetic reset key).
Mounts on a standard UK 25mm single gang flush or surface back box.

Quiescent current	0mA (none).
Alarm current	Determined by the type of control equipment and number / type of field devices connected to the system.
Indicators	Red Reassurance LED (lit constant for Standard calls).
Controls	Isolation keyswitch (switches monitoring off when ISOLATED); magnetic Reset target (cancels Standard calls made from the monitoring point and from other devices wired on the same Zone). Reset opera
Connections	SIG (Signal); RC (Signal); -Ve (Negative); SW- (Switched Negative); NO (normally open connection); NC (normally closed connection); T (trigger connection). PLK1 link for n/o or n/c operation.
Onboard 6.35mm Remote Jack Socket	No.
Onboard Infrared Receiver	No.
Product dimensions (mm)	87 W x 87 H x 33 D mm. Mounts on a UK 25mm single gang back box.
Construction & finish	Plastic.
IP Rating	IP41.
Weight	86g
Operating conditions/temperature	-5ºC to +40ºC. Max. relative humidity 95% non-condensing.

NC894DKB/M Monitoring Point Instructions – DNU8944100	73.52 KB	Download
EU Declaration of Conformity – 800 Series Monitoring Points (DoC)	157.88 KB	Download

Product dimensions:	87 W x 87 H x 24 D mm. Mounts on a 25mm UK single gang back box.
