EP210F Remote Status Unit

An overview of the EP203's inputs and outputs

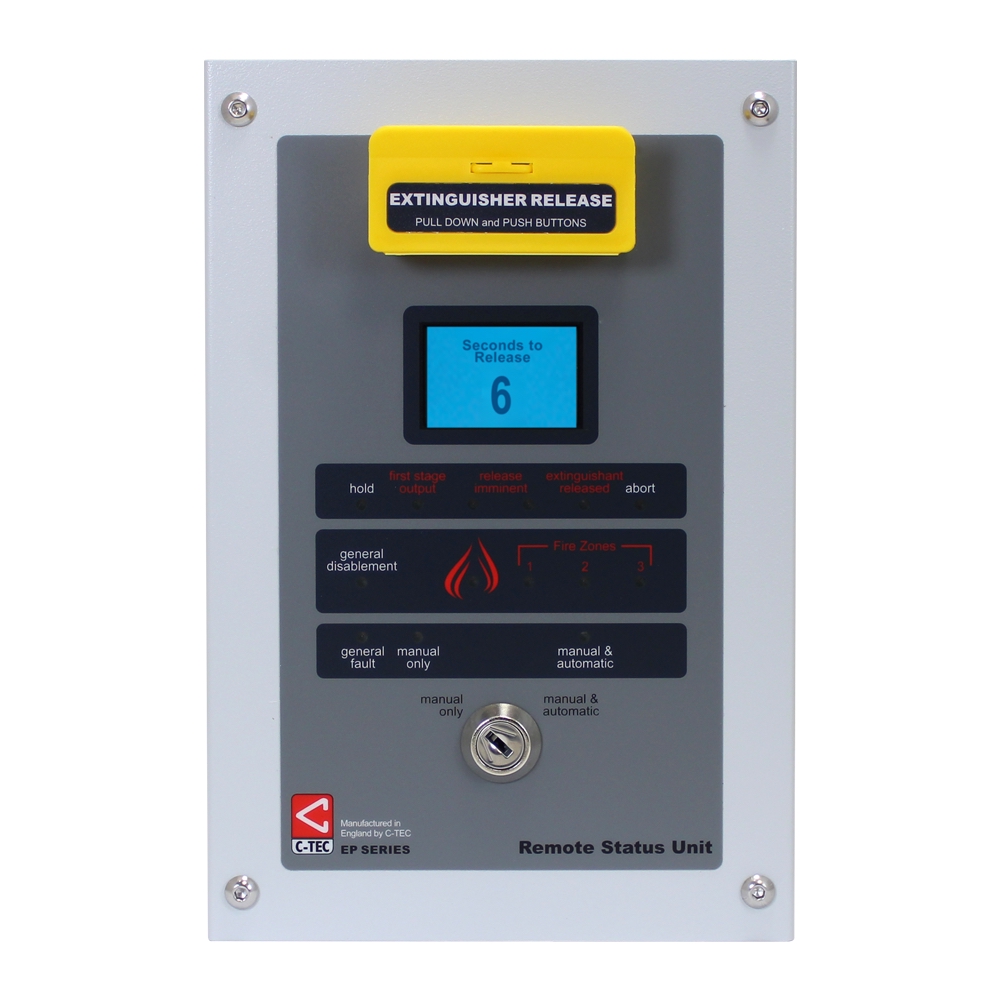

Remote Status Unit, Flush

Order code: EP210F Category: EP203 Automatic Extinguisher Panels

Designed to connect to the RS485 terminals on an EP203 Automatic Extinguisher Panel to provide remote system status indication via a 128 x 64 pixel LCD status display.
Also includes a pull-down manual release button, a mode (auto/manual) keyswitch and a wide range of system status indicators.
Three monitored input connections (Hold, Abort and Mode).
Max. 8 remote status units per EP203 panel.
Surface remote status units (EP210S) and weather proof enclosures (BF359/1) also available.

Download Images Download Datasheet Print

Technical Specifications

Power requirements	21-28VDC (200mA electronic fuse).
Quiescent current	7mA.
Auxiliary inputs	Three: (1) Hold; (2) Abort; (3) Mode. A 6k8 EOL resistor must be fitted across the terminals of the last device on each monitored input circuit. Unused circuits must have the 6k8 resistor fitted a
Indicators	Gen. fire; Fire Zones (x3); Gen. disablement; Hold; 1st Stage Output; 2nd Stage Output; Release Imminent (x2); Exting. Released; Abort; Gen. Fault; Man. Only; Man/Auto.
Controls	Extinguishant release (housed in yellow casing); Operation keyswitch (Manual only or Manual & Auto).
Product dimensions (mm)	175 W x 250 H x 70 D mm. Hole required for flush mounting 156 W x 232 H x 51 D mm.
Construction & finish	Metal.
IP Rating	IP30.
Weight	1.338kg..
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%.
Network specification	RS485; Max. 8 remote status units (any mix) per EP203; Four wire connection (2 power, 2 data); Daisy-chain wiring.

Documentation

EP210 Remote Status Units Instructions – DFU0000210

EU Declaration of Conformity – EP203 Ancillary Devices (DoC)

Dimensions & Mounting Information

Product dimensions:	175 W x 250 H x 53 D mm. Hole required for flush mounting 156 W x 232 H x 51 D mm.

BIM/CAD Drawings

EP210F Flush mounted (RFA)

EP210F surface mounted BIM (RFA)
