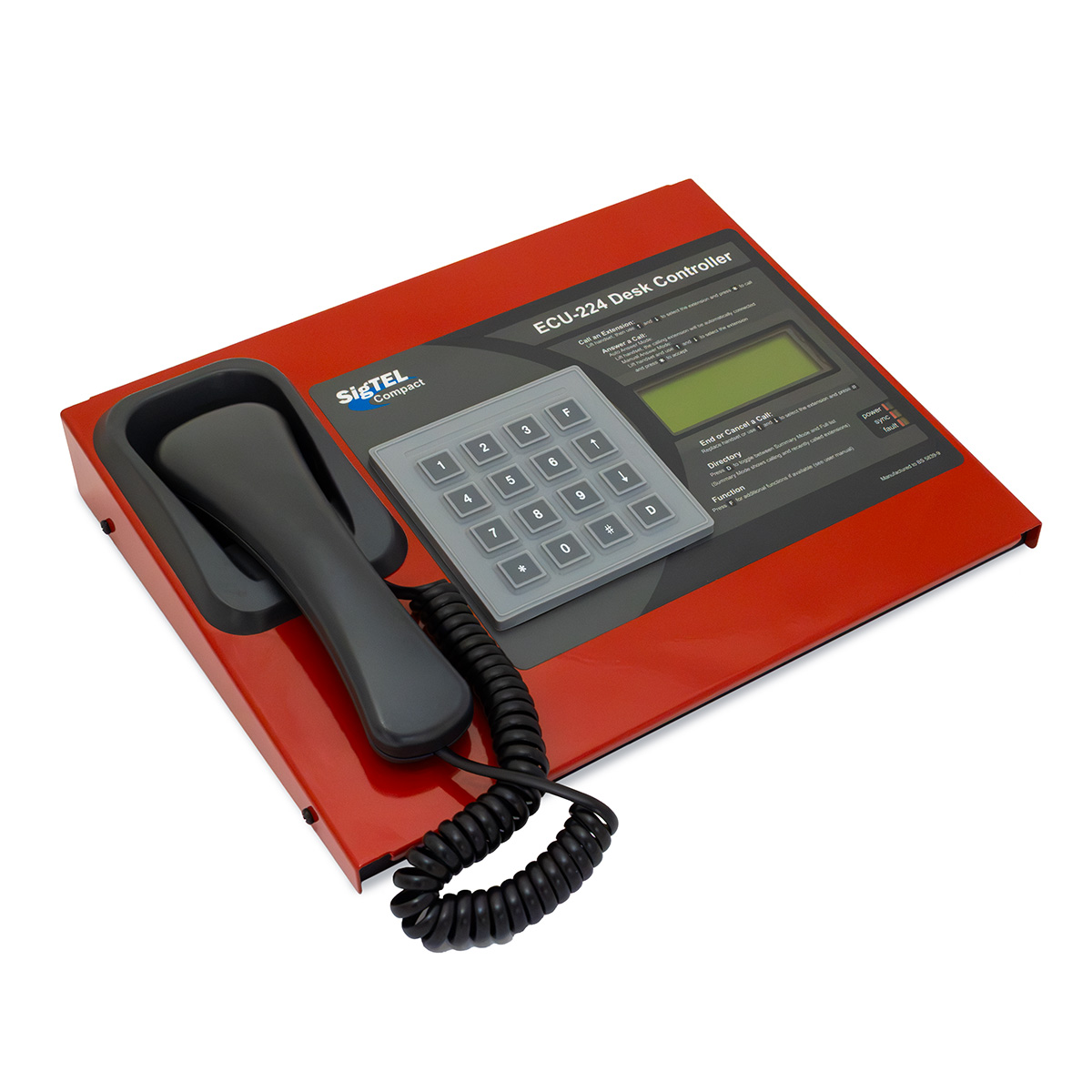

SigTEL 224 Line Desk Controller

Order code: ECU-224 Category: SigTEL 4-224 Line Controllers

A 224 line Desk Controller for use with our SigTEL disabled refuge, fire telephone and stadium marshalling system.
Allows operators to communicate with up to 224 disabled refuge or fire telephone outstations.
Designed to simplify call-handling on larger EVC installations.
Must be connected to an ECU-4, 8 or 16 system controller via an ECU-723 interface/network card.
Although designed to be free-standing, an optional sloping wall mounting shelf is available (order code ECUWMB).
See schematic/full instructions for further details.

Product dimensions (mm)	305 W x 100 H x 230 D mm.
Construction & finish	RAL 3000 (Red) desk controller with grey/black label.
Weight	1.7 Kg
Notes	Up to 14 ECU-224s can be installed on a network (each ECU-224 will require an ECU723 Interface/Network Card in a compatible ECU-4, 8 or 16 controller)
