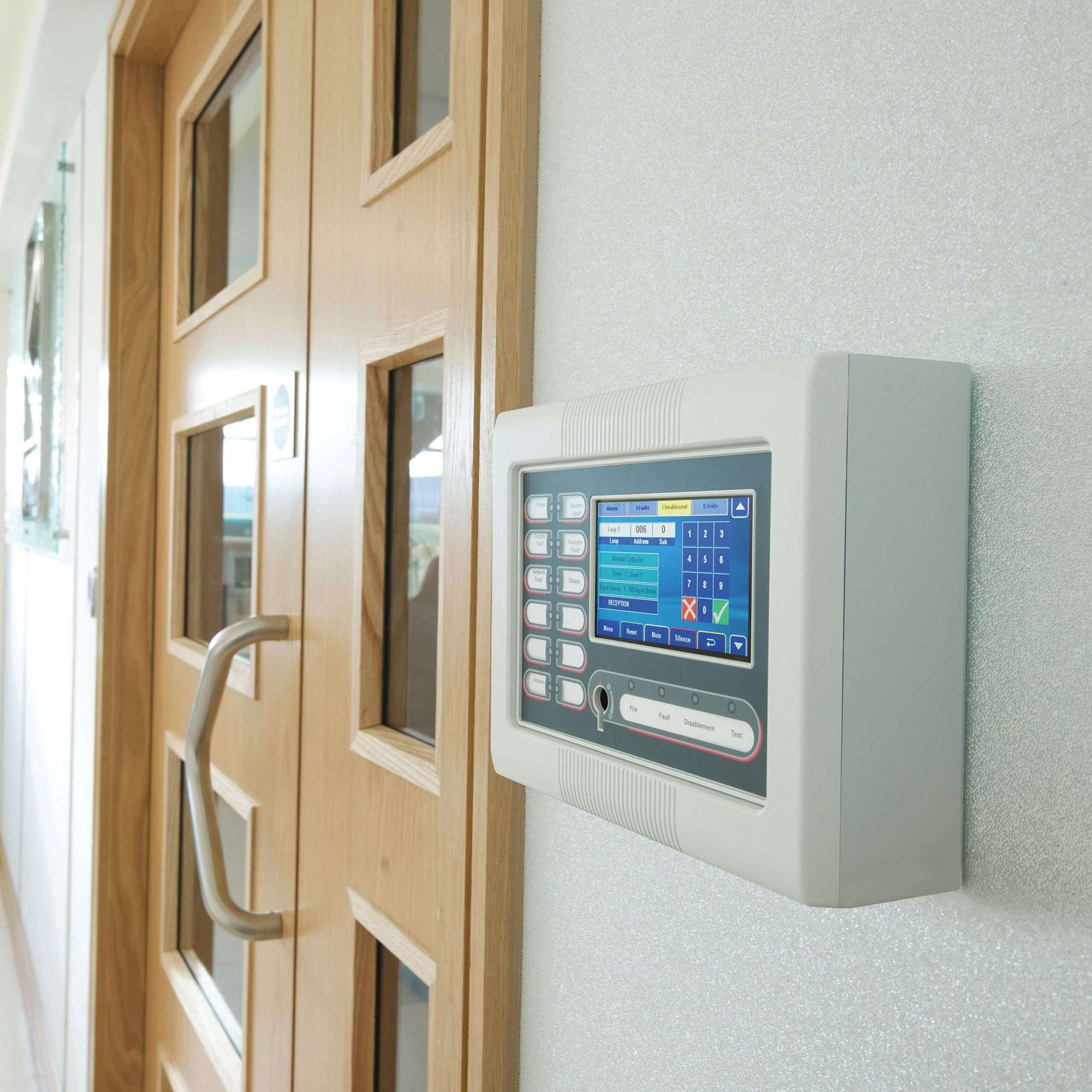

ZFP Compact Controller (Surface). CAST protocol

Order code: ZREP1S/CA Category: ZFP 1-8 Loop Fire Panels

An optional CAST ZFP network device that can be used as a traditional but compact repeater panel with added functionality.
Includes a Z41 Touchscreen Control Module and ZHN ‘Hi-Net’ multi-path fault-tolerant network PCB.
Housed in an stylish surface mounting plastic enclosure measuring just 214mm x 178mm x 70mm.
Can be used to an enhance a building’s reception area and access points (locate your main ZFP panels out of sight and let our ZFP Compact Controllers add a touch of class to your surroundings).
Full Access Level 2 functionality (silence, disable, reset, etc).
Requires a separate EN54-4 boxed PSU such as C-TEC’s BF360-24 1A 24V boxed PSU.
Up to 64 Compact Controllers can be connected to a ZFP network (each controller classed as 1 network node).
Vertical and horizontal alignment plates (ZMBOXAL & ZMBOXAS) also available.

Protocol/compatibility	CAST.
Power requirements	Requires a separate EN54-4 PSU such as C-TEC's BF360-24 1.5A 24V boxed PSU.
Indicators	Full-colour 480 x 272 pixel touchscreen; 16 LEDS (11 reserved for mandatory EN54 indicators).
Controls	Interactive touchscreen with menu sensitive buttons; 1 x keyswitch allowing direct access to Access Level 2. Keyswitch requires S-KEY fire panel key.
Product dimensions (mm)	214 W x 178 H x 70 D mm. Surface mounting.
Construction & finish	Plastic detachable lid and back box. RAL7035.
IP Rating	IP41.
Weight	1.27kg (unpacked).
Operating conditions/temperature	-5ºC to +40ºC. Max. relative humidity 95% non-condensing.
Notes	Up to 64 ZFP Compact Controllers can be connected to a ZFP 'Hi-Net' Network. See Instructions for further details.

XFP & ZFP CAST Addressable Fire Alarm System Brochure – DML0540100	5.16 MB	Download
ZFP CAST Fire Panel User Manual & Log Book – DFU5030050	3.31 MB	Download
ZFP CAST Fire Panel Quick Start User Guide – DFU5030060	613.09 KB	Download
EU Declaration of Conformity – CAST ZFP Compact Controllers (DoC)	171.81 KB	Download
UKCA Declaration of Conformity – CAST ZFP Compact Controllers (DoC)	165.52 KB	Download

Product dimensions:	214 W x 178 H x 70 D mm. Surface mounting.
Horizontal (NCBOXAS) and vertical (NCBOXAL) alignment plates are available for applications where you wish to locate a Compact Controller alongside a 20, 40 or 100 Zone ZFP Indicator Module.
